A SERIES
A70HMI MOBIL "balloonlamp" envelope diameter: 50cm, optimum operating height: 2-3meter, average set up time: 2minute, number of lamps: 2, type of lamps: HMI, power of lamps: 70W, optional voltage: 12VDC or 24VDC, power cabel: 2G2.5, average lamp life: 1.000hour, power supply protection: 10A, efficiency: 96Lm/W, maximum lumen: 6.720Lm, optional theoretical color temperature: 4.300K, 5.000K, 6.000K, 8.000K, 10.000K, weight: 4,9kg, packing dimension: 51cm x 22cm (whitout accessories)
A110HMI MOBIL "balloonlamp" envelope diameter: 50cm, optimum operating height: 2-3meter, average set up time: 2minute, number of lamps: 2, type of lamps: HMI, power of lamps: 110W, optional voltage: 12VDC or 24VDC, power cabel: 2G2.5, average lamp life: 1.000hour, power supply protection: 16A, efficiency: 85Lm/W, maximum lumen: 9.350Lm, theoretical color temperature: 6.000K, weight: 5,2kg, packing dimension: 51cm x 22cm (whitout accessories)

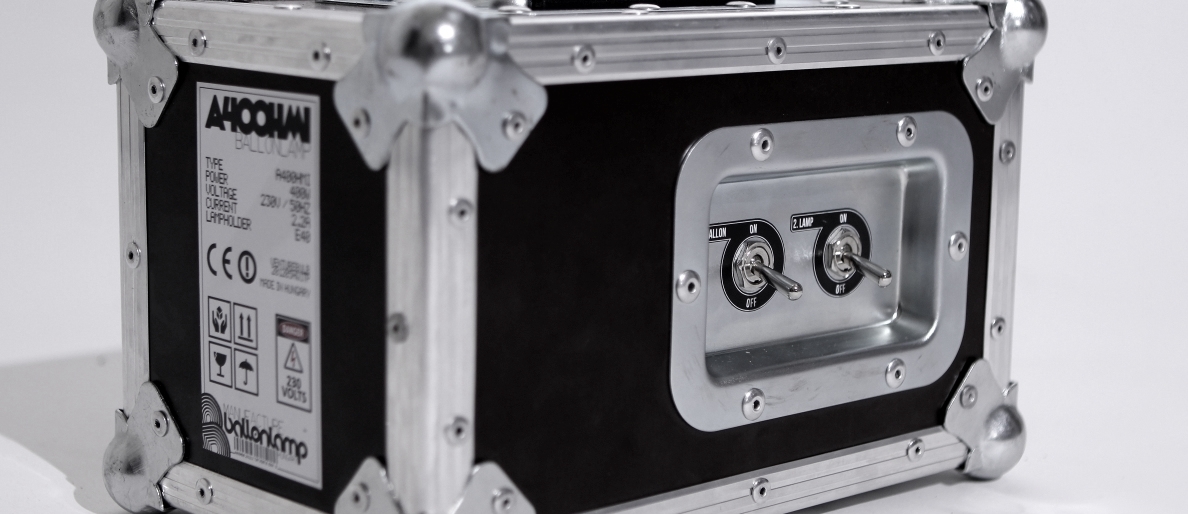

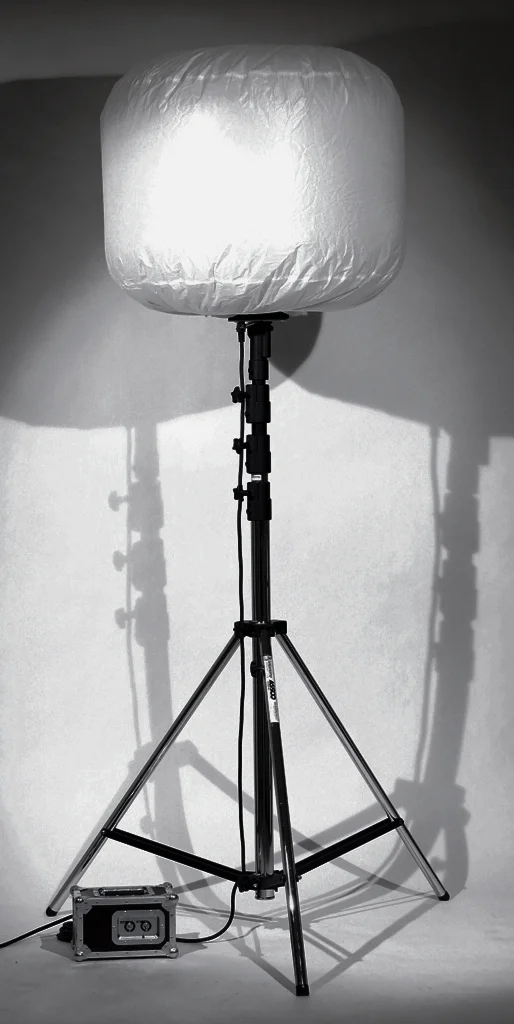

A400HMI "balloonlamp" envelope diameter: 80cm, optimum operating height: 2,2-3meter, average set up time: 6-8minute, number of lamp: 1, type of lamps: HMI, power of lamps: 400W, optional voltage: 220VAC, 230VAC or 240VAC, power cabel: 3G1.5, average lamp life: 15.000hour, power supply protection: 8A, efficiency: 100Lm/W, maximum lumen: 40.000Lm, theoretical color temperature: 4.000K, *lamphead weight: 5kg, *packing dimension: 82cm x 25cm*(whitout ballast and accessories)
"EOS" end of series

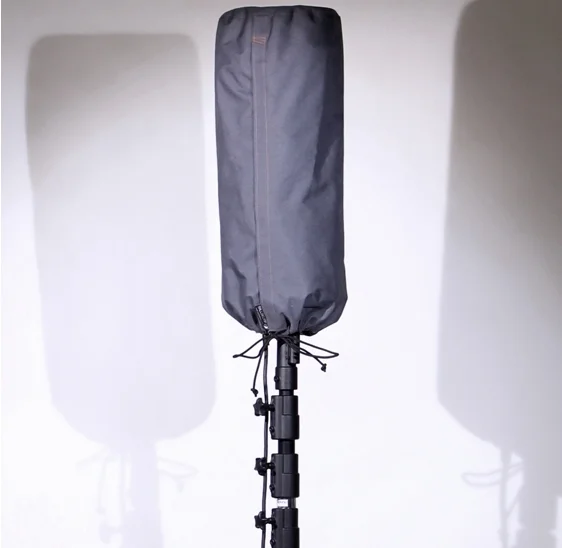

THE NEW COMPACT A1000HMI "balloonlamp" envelope diameter: 80cm, optimum operating height: 3-6meter, average set up time: 10minute, number of lamp: 1, type of lamps: HMI, power of lamps: 1.000W, optional voltage: 220VAC, 230VAC or 240VAC, power cabel: 3G1.5, average lamp life: 7.000hour, power supply protection: 12A, efficiency: 90Lm/W, maximum lumen: 90.000Lm, theoretical color temperature: 4.000K, *lamphead weight: 5,9kg, *packing dimension: 82cm x 25cm*(whitout ballast and accessories)
A1000HMI "balloonlamp" envelope diameter: 80cm, optimum operating height: 3-6meter, average set up time: 10minute, number of lamp: 1, type of lamps: HMI, power of lamps: 1.000W, optional voltage: 220VAC, 230VAC or 240VAC, power cabel: 3G1.5, average lamp life: 7.000hour, power supply protection: 12A, efficiency: 90Lm/W, maximum lumen: 90.000Lm, theoretical color temperature: 4.000K, *lamphead weight: 5,9kg, *packing dimension: 82cm x 25cm*(whitout ballast and accessories)
A2000HMI "balloonlamp" envelope diameter: 140cm, optimum operating height: 4-8meter, average set up time: 12minute, number of lamp: 1, type of lamps: HMI, power of lamps: 2.000W, optional voltage: 220VAC, 230VAC or 240VAC, power cabel: 3G2.5, average lamp life: 4.000hour, power supply protection: 16A, efficiency: 92,5Lm/W, maximum lumen: 185.000Lm, theoretical color temperature: 4.000K, *lamphead weight: 8,9kg, *packing dimension: 112cm x 28cm*(whitout ballast and accessories)
Currently not available

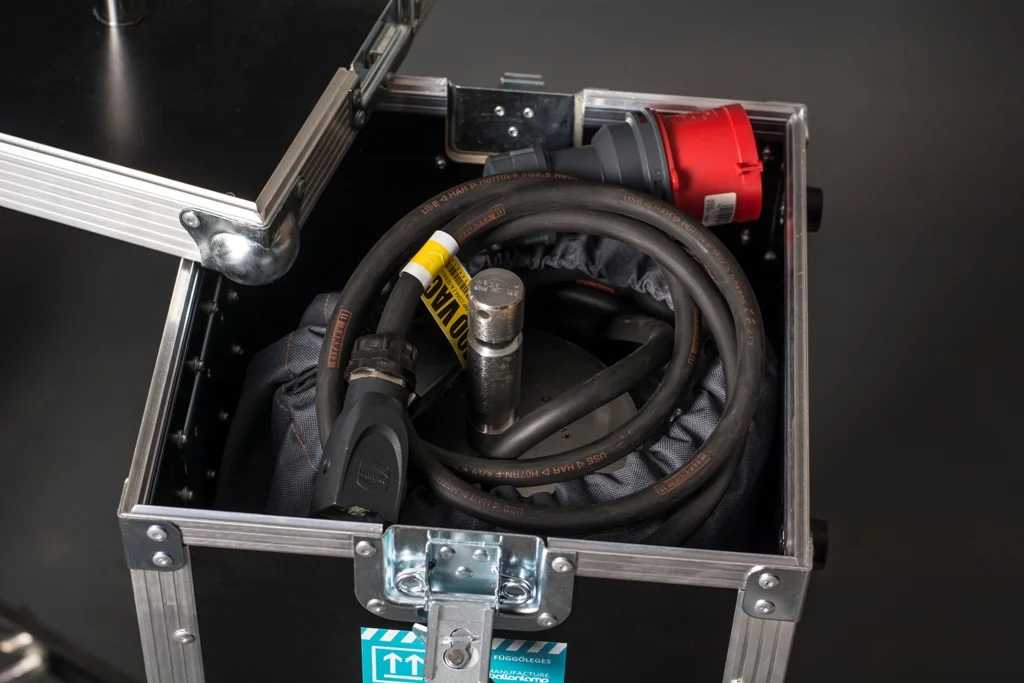

THE NEW A2000HMI 400VAC "balloonlamp" envelope diameter: 120cm, optimum operating height: 4-8meter, average set up time: 12minute, number of lamp: 1, type of lamps: HMI, power of lamp: 2.000W, optional voltage: 380VAC, 400VAC or 415VAC, power cabel: 5G4, average lamp life: 4.000hour, power supply protection: 6A, efficiency: 92,5Lm/W, maximum lumen: 185.000Lm, theoretical color temperature: 4.000K, *lamphead weight: 8,9kg,
A1000H "balloonlamp" envelope diameter: 80cm, optimum operating height: 2-3meter, average set up time: 8minute, number of lamp: 1, type of lamps: tungsten, power of lamps: 1.000W, voltage: 230VAC, power cabel: 3G1.5, average lamp life: 800hour, power supply protection: 6A, efficiency: 27Lm/W, maximum lumen: 27.000Lm, theoretical color temperature: 3.200K, *lamphead weight: 4,5kg, *packing dimension: 82cm x 25cm*(whitout accessories)
A2000H "balloonlamp" envelope diameter: 80cm, optimum operating height: 2,2-5meter, average set up time: 8minute, number of lamp: 1, type of lamps: tungsten, power of lamps: 2.000W, voltage: 230VAC, power cabel: 3G1.5, average lamp life: 800hour, power supply protection: 10A, efficiency: 27Lm/W, maximum lumen: 54.000Lm, theoretical color temperature: 3.200K, *lamphead weight: 4,6kg, *packing dimension: 82cm x 25cm*(whitout accessories)
A4000H "balloonlamp" envelope diameter: 140cm, optimum operating height: 3-9meter, average set up time: 15minute, number of lamps: 2, type of lamps: tungsten, power of lamps: 2x2.000W, voltage: 230VAC, power cabel: 2x3G1.5, average lamp life: 800hour, power supply protection: 20A, efficiency: 27Lm/W, maximum lumen: 108.000Lm, theoretical color temperature: 3.200K, *lamphead weight: 8,6kg, *packing dimension: 112cm x 28cm *(whitout accessories)
A1000HD "balloonlamp" whit DMX dimmer, envelope diameter: 80cm, optimum operating height: 2-3meter, average set up time: 8minute, number of lamp: 1, type of lamps: tungsten, power of lamps: 1.000W, voltage: 230VAC, power cabel: 3G1.5, average lamp life: 800hour, power supply protection: 6A, efficiency: 27Lm/W, maximum lumen: 27.000Lm, theoretical color temperature: 3.200K, *lamphead weight: 4,6kg, *packing dimension: 82cm x 25cm*(whitout accessories)
A2000HD "balloonlamp" whit DMX dimmer, envelope diameter: 80cm, optimum operating height: 2,2-5meter, average set up time: 8minute, number of lamp: 1, type of lamps: tungsten, power of lamps: 2.000W, voltage: 230VAC, power cabel: 3G1.5, average lamp life: 800hour, power supply protection: 10A, efficiency: 27Lm/W, maximum lumen: 54.000Lm, theoretical color temperature: 3.200K, *lamphead weight: 4,7kg, *packing dimension: 82cm x 25cm*(whitout accessories)
A2000HOD M. "balloonlamp" op.connector whit dimmer, low noise, envelope diameter: 80cm, optimum operating height: 2,2-5meter, average set up time: 8minute, number of lamp: 1, type of lamps: tungsten, power of lamps: 2.000W, voltage: 230VAC, power cabel: 3G1.5, average lamp life: 400hour, power supply protection: 10A, efficiency: 27Lm/W, maximum lumen: 54.000Lm, optional theoretical color temperature: 2.900K or 3.200K, *lamphead weight: 5,1kg, *packing dimension: 82cm x 25cm *(whitout accessories)
A4000HOD M. "balloonlamp" op.connector whit dimmer, low noise, envelope diameter: 140cm, optimum operating height: 3-9meter, average set up time: 15minute, number of lamps: 2, type of lamps: tungsten, power of lamps: 2x2.000W, voltage: 230VAC, power cabel: 2x3G1.5, average lamp life: 400hour, power supply protection: 20A, efficiency: 27Lm/W, maximum lumen: 108.000Lm, optional theoretical color temperature: 2.900K or 3.200K, *lamphead weight: 8,7kg, *packing dimension: 112cm x 28cm*(whitout accessories)
